VISULOX 5 Documentation

Configuration of File Transfer in the VISULOX Cockpit

Available File Transfer groups


New File Transfer groups can be created and existing groups can be edited, copied or deleted.

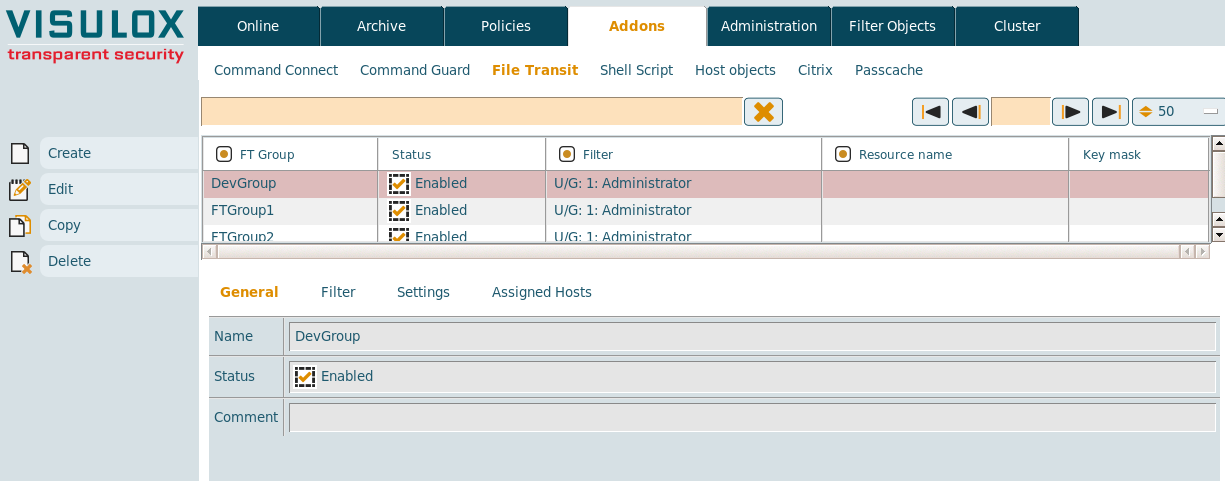

General


The name of the group and the status (enabled or disabled) has to be entered.

A comment for the group can be added as well.

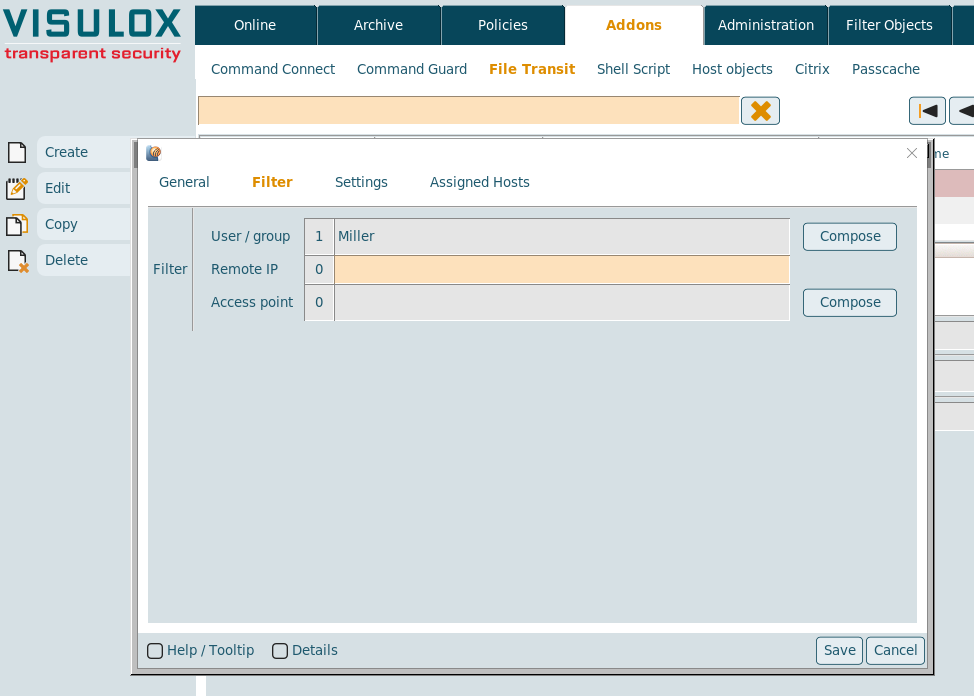

Filter


The filter for File Transfer groups can be set on user / group, the remote IP or the access point.

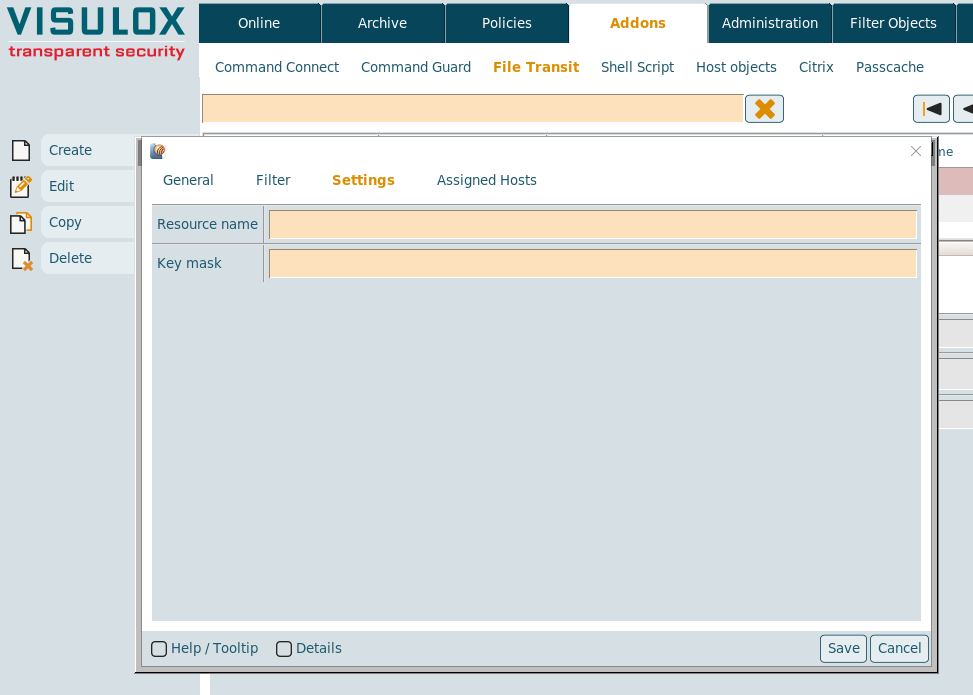

Settings


The resource name or a key mask for connections via SSH Key can be set.

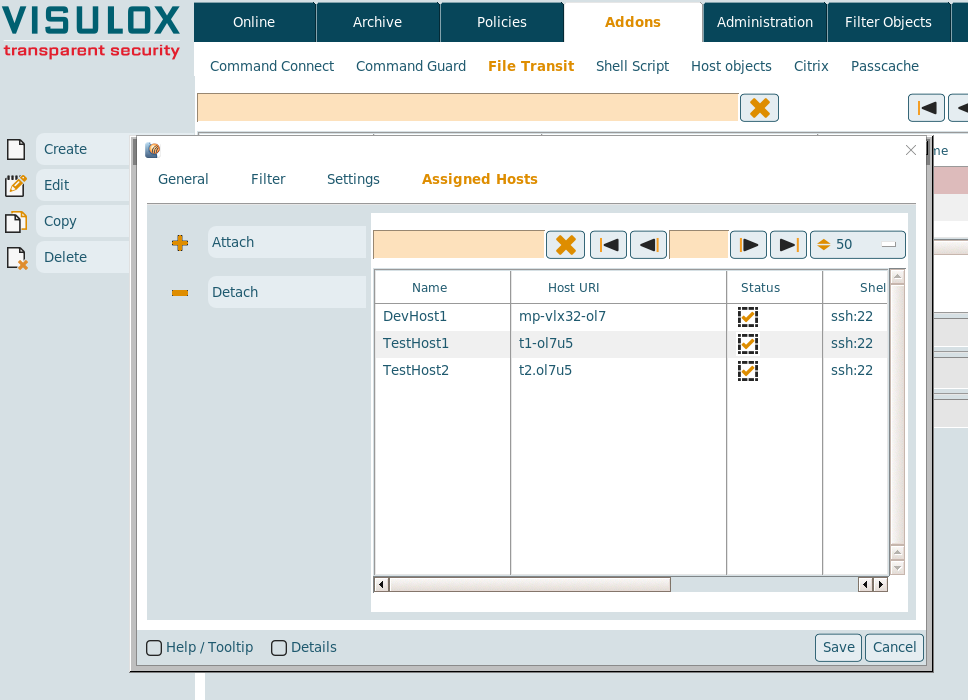

Assigned hosts


Host objects can be attached / detached from the File Transit group. (See also: Host objects)

Before hosts can be added to a new created group, the group must be saved once.
