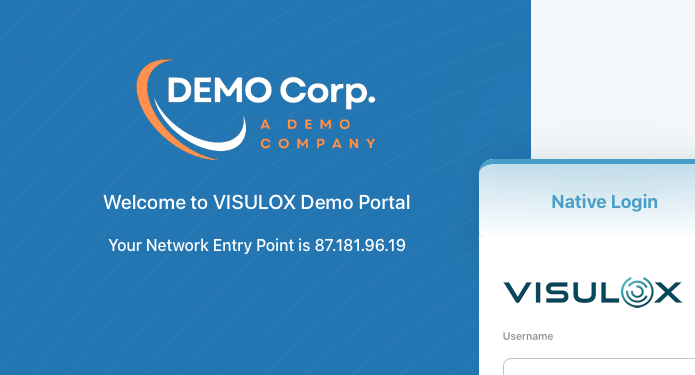

There are three elements on the VISULOX login page header:
-
The customer logo
-
The banner
-
The connection line
Banner and connection line can be fully configured. Cluster and node related.
The license name / banner configuration can be changed with the following command for a node:
visulox config -name .banner
----------------------------------------------------------------------------------------------------------------------------------
| parameter | type | value ... |
----------------------------------------------------------------------------------------------------------------------------------
| fileexchange.banner | SETUP | %LICENSE% ... |
| ftpd.banner | OPERATION | VISULOX FTP Server: to login with username/pin. You will find your pin in your T ... |
| layout.vMPOL6U3DEVEL.banner | SETUP | ... |
| portal.banner | SETUP | %LICENSE% ... |
----------------------------------------------------------------------------------------------------------------------------------
visulox config -name .connection
---------------------------------------------------------------------------
| parameter | type | value |
---------------------------------------------------------------------------
| fileexchange.connection | SETUP | From %RIP% on %NODE% (%HOST%) |
| layout.vMPOL6U3DEVEL.connection | SETUP | |
| portal.connection | SETUP | From %RIP% on %NODE% (%HOST%) |
---------------------------------------------------------------------------
The node related texts are concatenated to the cluster wide parameters.
visulox config -name portal.banner="VLX Demo System"
Configuration parameters set while the node is offline will only be applied to the local VISULOX Node.
If a parameter should be changed for the whole VISULOX Cluster, the parameter has to be set again once the node is online again.
Available placeholders:
|
Variable |
Description |
|---|---|
|
%SYSTEMID% |
Unique system ID |
|
%LICENSE% |
License name |
|
%CUSTOMER% |
Name of the customer |
|
%OWNER% (Filexchange only) |
Name of the owner |
|
%OWNERSHORT% (Filexchange only) |
Short name of the owner |
|
%FULLNAME% (Filexchange only) |
Full name of the owner |
|
%HOST% |
Hostname |
|
%HOSTSHORT% |
Short name of the host |
|
%NODE% |
Logical name of the node |
|
%RIP% |
Remote IP address |
|
... |
... |
For individually customized login pages based on different access URLs, see:
Access Branding
