VISULOX Cockpit / Archive

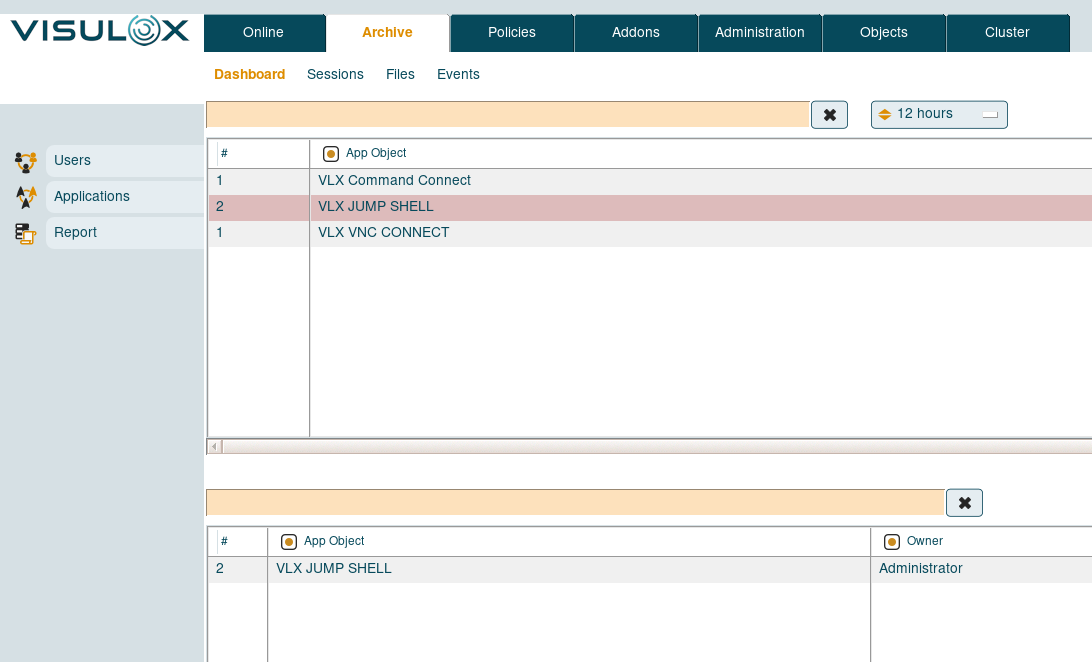

VISULOX Cockpit Archive / Dashboard

In the dashboard tab information of ended user / application sessions can be found.
Previously logged in users and their used applications are displayed in a table and reports can be generated.

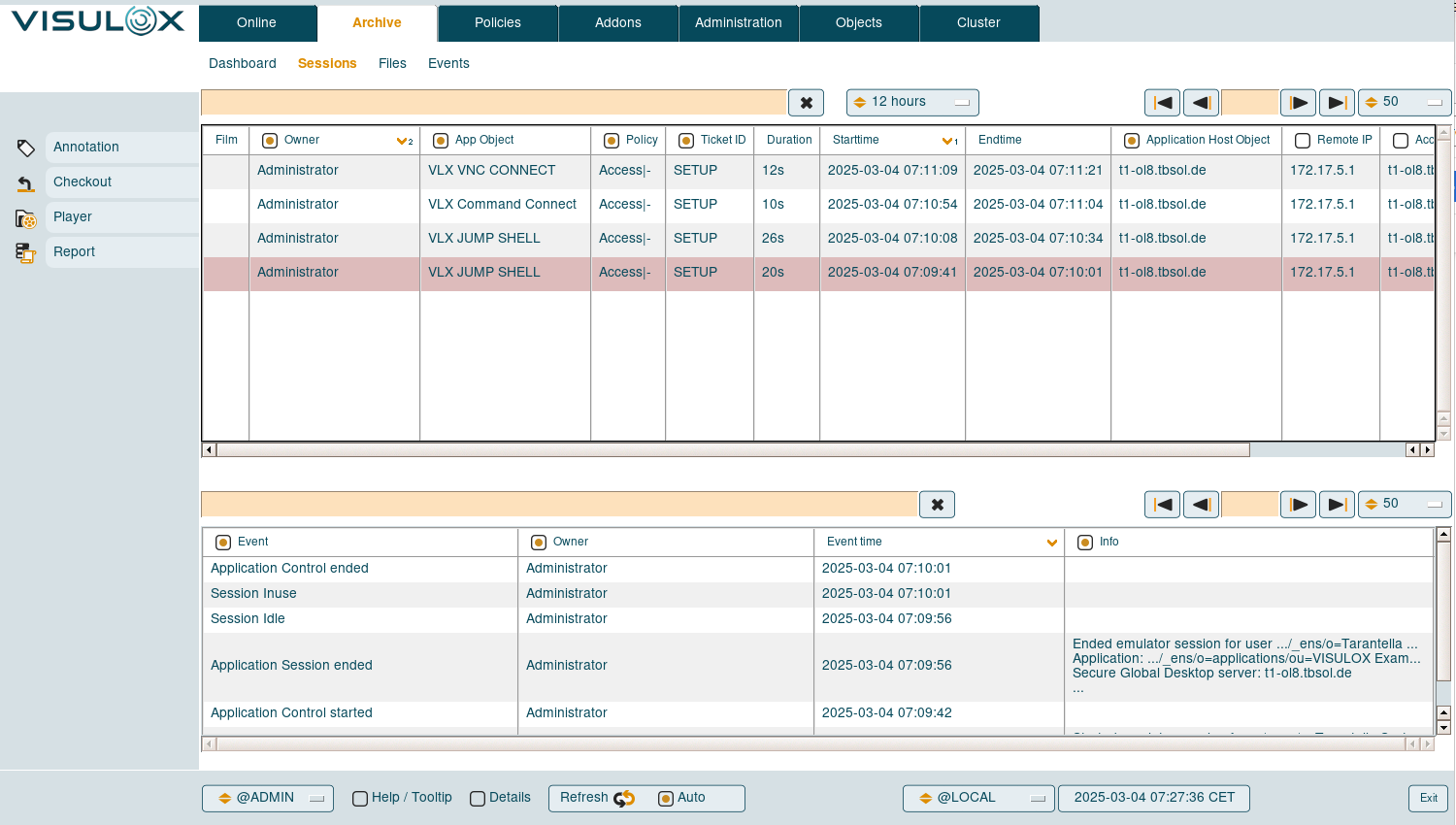

VISULOX Cockpit Archive / Sessions

All application sessions with all the available information is displayed in a table.
Once a session is selected all archived events for this session are displayed in a separate table.


Available features

  • Annotation
    A remark can be added to a session by the supervisor. Remarks are shown in the events section of a selected session.

  • Checkout
    Selected sessions can be checked out into Transit Zone, where they can be downloaded to the client.

  • Player
    Recorded sessions can be viewed with the online player directly in the VISULOX Cockpit. See also: VISULOX Player

  • Report
    Reports can be generated for the selected sessions.

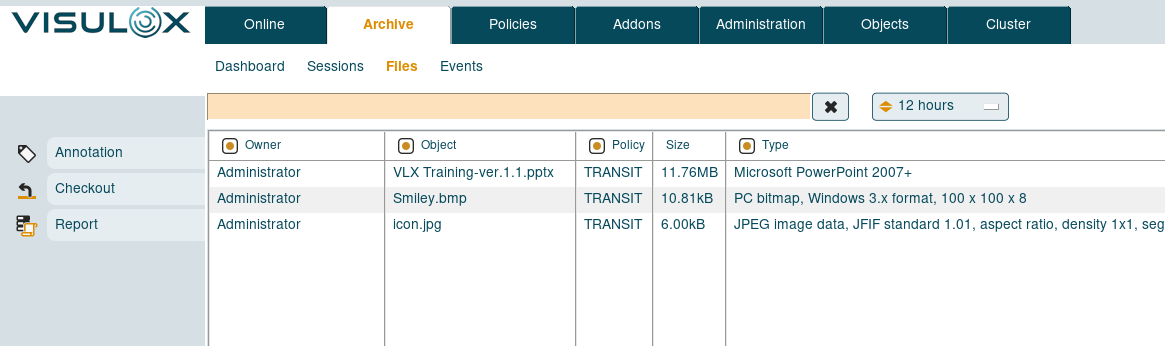

VISULOX Cockpit Archive / Files

All transferred files from all users and directions are displayed with the available information.


Available features

  • Annotation
    A remark can be added to a file by the supervisor. Remarks are shown in the events section of a selected session.

  • Checkout
    Selected files can be checked out into Transit Zone, where they can be downloaded to the client.

  • Report
    Reports can be generated for the selected files.

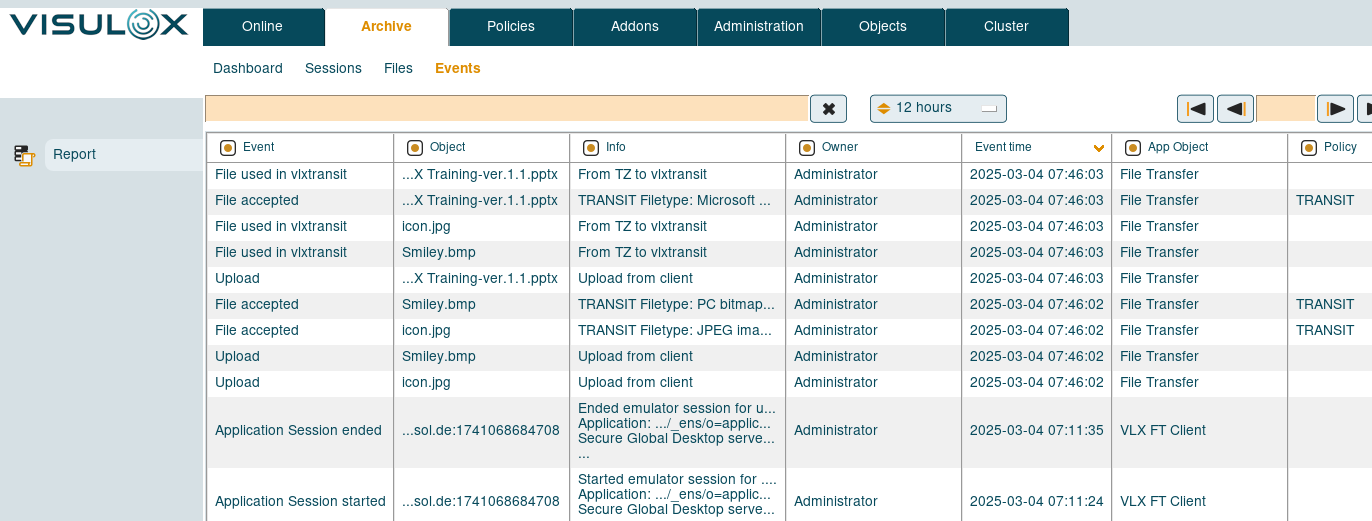

VISULOX Cockpit Archive / Events

In the Events tab all VISULOX events are listed.


Available features

  • Report
    Reports can be generated for the selected events.
