How to setup keepalived

About

The common method to implement a single access URL for a VISULOX Portal environment and more than one
VISULOX Gateway is the use of a load balancer to distribute the sessions between the Gateways.
But in some projects no load balancer is available, nevertheless a single URL is required to allow high available access to the system.

A possibility to solve this issue is to set up the keepalived daemon to provide the single URL to all portal users.
keepalived runs on all involved GW servers, checks the availability of the virtual IP address on the network
and starts it on a local Secure Gateway in case of failure.

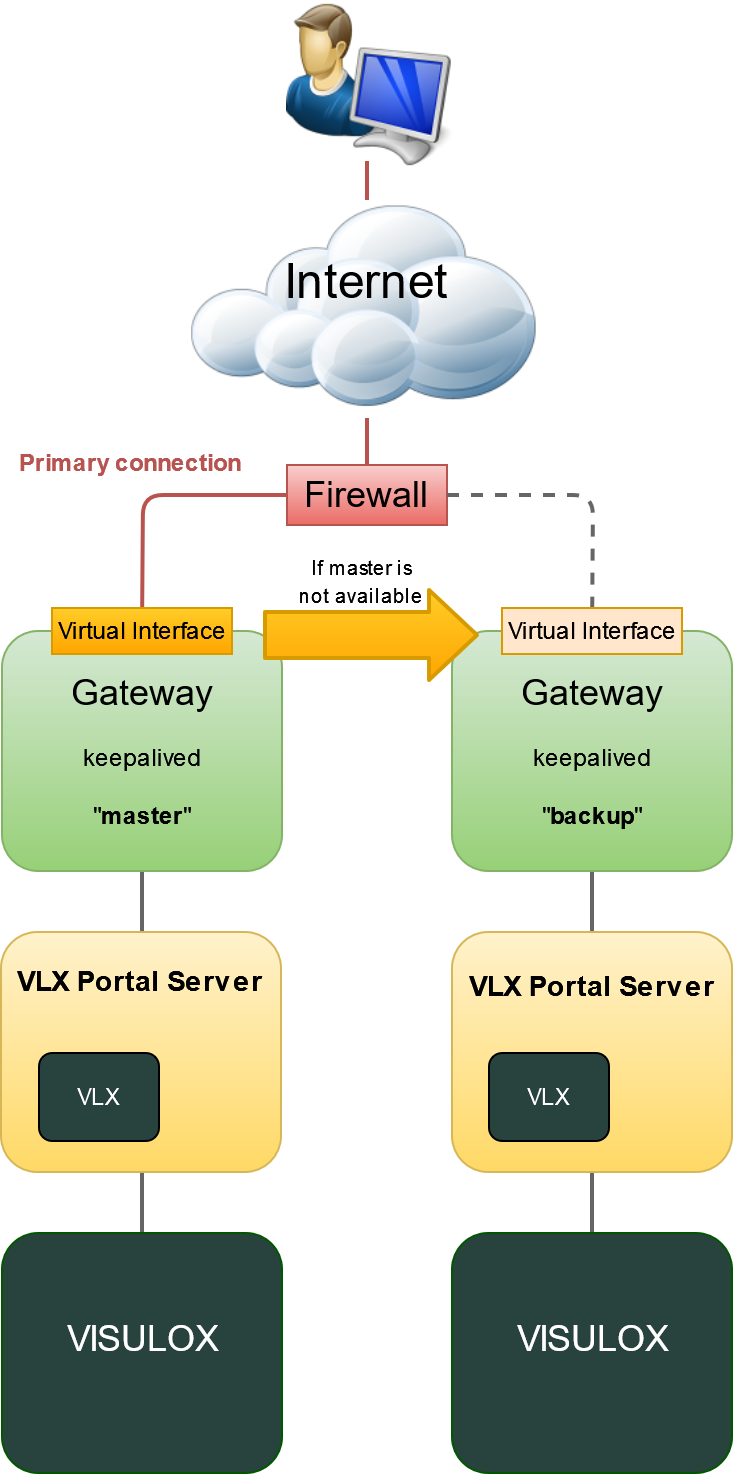

In this constellation the "master" Gateway provides the network interface with the virtual IP address and all sessions
are running through this Gateway will be redirected by the Gateway distribution mechanism to one of the available VISULOX Portal Servers.

Then the Gateway process is not running on the "master" Gateway, the keepalived process disables the virtual interface.
The keepalived daemon on the "backup" Gateway notices that the IP address is not accessible on the network and
initializes the virtual interface locally to make the portal accessible.

Installation

The keepalived RPM is available in the Linux distribution and can be installed via dnf or yum.

The rpm package has to be installed on all VISULOX Gateway Servers:

Install

CODE

dnf install keepalived

Copy /opt/visulox/setup/monitoring/checkPortal.sh to the /etc/keepalived/ directory.

Configuration

Configuration on the master GW:

Master: /etc/keepalived/keepalived.conf

CODE

! Configuration File for keepalived
global_defs {
   notification_email {
     sysadmin@firewall.loc
   }
   notification_email_from lb1@firewall.loc
   smtp_server localhost
   smtp_connect_timeout 30
 }

vrrp_script chk_gateway {
    script       "/etc/keepalived/checkPortal.sh -gw -e -q"
    interval 15  # check every 5 seconds
    fall 2       # require 2 failures for KO
    rise 2       # require 2 successes for OK
    timeout 4
}
vrrp_instance VI_EXTERNAL {
    state MASTER
    interface ens160
    virtual_router_id 51
    priority 255
    advert_int 1
    authentication {
        auth_type PASS
        auth_pass 1111
    }
    virtual_ipaddress {
        192.168.10.222/24
    }
    track_script {
        chk_gateway
    }
}

Configuration on the backup GW:

Backup: /etc/keepalived/keepalived.conf

CODE

! Configuration File for keepalived

global_defs {
   notification_email {
     sysadmin@firewall.loc
   }
   notification_email_from lb1@firewall.loc
   smtp_server localhost
   smtp_connect_timeout 30
 }
vrrp_script chk_gateway {
    script       "/etc/keepalived/checkPortal.sh -gw -e -q"
    interval 15  # check every 5 seconds
    fall 2       # require 2 failures for KO
    rise 2       # require 2 successes for OK
    timeout 4
}
vrrp_instance VI_EXTERNAL {
    state BACKUP
    interface ens160
    virtual_router_id 51
    priority 200
    advert_int 1
    authentication {
        auth_type PASS
        auth_pass 1111
    }
    virtual_ipaddress {
        192.168.10.222/24
    }
    track_script {
        chk_gateway
    }
}

Settings

SELINUX

CODE

chcon -t keepalived_unconfined_script_exec_t /etc/keepalived/checkPortal.sh

FIREWALL

CODE

firewall-cmd --add-rich-rule='rule protocol value="vrrp" accept' --permanent
firewall-cmd --reload

Start and enable

CODE

systemctl enable --now keepalived

Creating new Access Point

When VISULOX Access Points are configured, login with the keepalive - URL is not possible.

Configure a new Access Point with both GW IP addresses as source.

CODE

visulox config accesspoint add -name <keepalived_name> -banner "banner on login page" -connection "text on login page" -gatewayip <gw01_ip>:<gw02_ip>
