VISULOX4_QuickInstallGuide_OL9

This is a step by step guide to install the VISULOX PORTAL Service,

local VISULOX GATEWAY and the VISULOX Service

on a stand-alone server.

Setup of an Oracle Linux 9 server with basic setup

The recommended platform is Oracle Linux 9 with at least 10Gbyte for the OS, 20Gbyte for VISULOX PORTAL Service
and 30 Gbyte for the VISULOX Service free space on the hard disc (small installation)
VISULOX can be virtualized, the disk must NOT have "Thin provisioning" enabled.
The /opt directory must NOT be mounted with -nosuid parameter.
umask 022 is recommended for installation and start of the VISULOX PORTAL Service
Symbolic links are not supported
The users ttasys and ttaserv have to be placed in the /home directory, if created manually before installation.
The recommended VISULOX version is the latest VISULOX release
The recommended user repositories are all repositories, that are supported by the VISULOX PORTAL Service
Firewall configured properly or disabled
/etc/hosts should look like: 127.0.0.1 localhost localhost.localdomain
NTP or Chrony enabled
For Ports, see: Network communication within VISULOX

Make sure that correct hostnames are used for the servers in the environment.

Hostnames must not contain underscores (because of RFC 952 and domain names with underscores)!

The FQDN of the host must not exceed 50 characters!

Changing hostnames after installation of VISULOX is not supported!

Checking the hostname (must be identical):

CODE

nslookup $(hostname -f) --> Hostname and IP address is displayed
nslookup <IP address> --> IP address and hostname is displayed

getent ahosts $(/opt/tarantella/bin/bin/ttahostname) --> IP address and hostname is displayed
getent hosts <IP address> --> IP address and hostname is displayed

getent ahost localhost --> IP address is displayed (127.0.0.1)
getent hosts 127.0.0.1 --> IP address (127.0.0.1) and hostname (localhost) is displayed

Update Oracle Linux 9 and install dependencies

Installing VISULOX 4.x on Linux platforms, the yum / dnf command has to be used to ensure that any package dependencies are resolved automatically.

This means that yum must be configured to use a suitable Linux package repository.
Make sure that ol9_appstream_latest, ol9_baseos_latest and ol9_developer_EPEL are in yum repolist as well.

CODE

dnf repolist

repo id                                                              repo name

ol9_UEKR7                                                            Oracle Linux 9 UEK Release 7 (x86_64)
ol9_addons                                                           Oracle Linux 9 Addons (x86_64)
ol9_appstream                                                        Oracle Linux 9 Application Stream Packages (x86_64)
ol9_baseos_latest                                                    Oracle Linux 9 BaseOS Latest (x86_64)
ol9_developer_EPEL                                                   Oracle Linux 9 EPEL Packages for Development (x86_64)

ol9-codeready is needed for transitmapping.

For the Epel repository on Red Hat 9 use:

CODE

dnf install https://dl.fedoraproject.org/pub/epel/epel-release-latest-9.noarch.rpm

CODE

dnf update

dnf install xterm xauth
dnf install java-11-openjdk

Download VISULOX packages

All VISULOX packages can be downloaded from amitego-engineering.

VISULOX packages

CODE

mkdir /root/POC
cd /root/POC

Copy all downloaded files to /root/POC

- visulox-rte-1.2.0-1.el9.x86_64.rpm
- visulox-4.3.2-1.el9.x86_64.rpm
- visulox-portal-4.3.2-1.el9.x86_64.rpm
- visulox-gateway-4.3.2-1.el9.x86_64.rpm

Installation

VISULOX RTE and VISULOX Service 4.x

CODE

cd /root/POC
dnf install visulox-rte-1.2.0-1.el9.x86_64.rpm
dnf install visulox-4.3.2-1.el9.x86_64.rpm

VISULOX PORTAL Service and VISULOX GATEWAY

CODE

dnf install visulox-portal-4.3.2-1.el9.x86_64.rpm
dnf install visulox-gateway-4.3.2-1.el9.x86_64.rpm

visulox-portal start

Configure local VISULOX GATEWAY

CODE

visulox-portal stop

visulox-portal discover gateway --local

visulox-portal start
visulox-gateway start

On external VISULOX Gateways, use the following command to add the VISULOX Portal Array:

CODE

visulox-gateway server add-array --name osgd --serverurl <https://fqdn of the primary portal server>

The server URL has to be used only, without ".../sgd/" at the end.

After setup of the VISULOX Gateway, the load balancer probing template file is available.
(See also: How to create a feedback page for Load Balancers in the VISULOX GATEWAY configuration)

Attach VISULOX Service and start

CODE

visulox portal attach

visulox start

visulox status
visulox integrity

Done / first steps

Login to your server (https://<full qualified domain name>) as administrator with root password. Launch "VLX Cockpit (all)" from the Workspace.

In the VISULOX Cockpit go to Policies / Application Policy and configure "VLX Jump Shell" for recording:

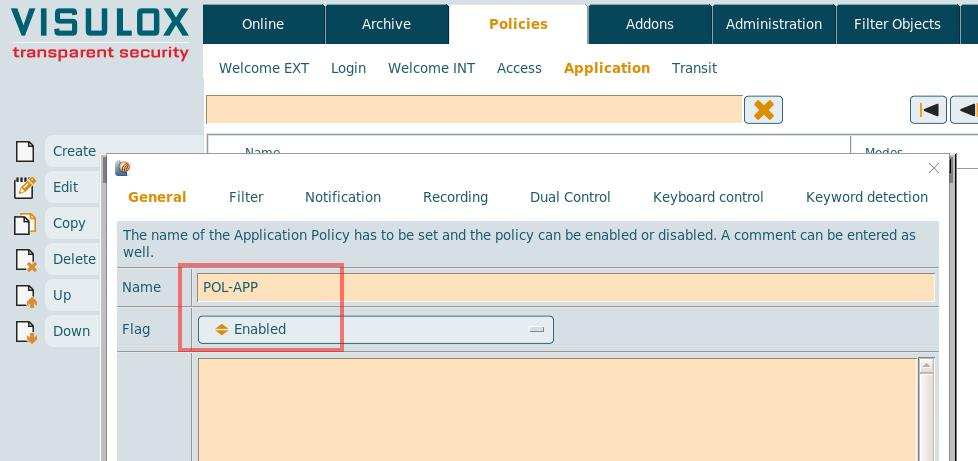

Choose "Create" :

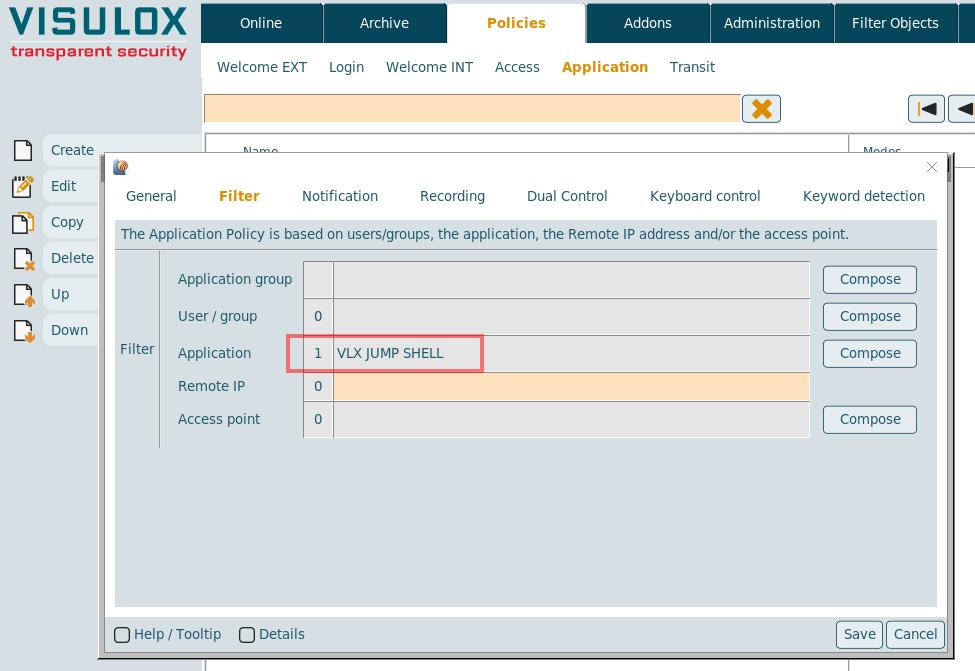

Change to the "Filter" tab and choose "Compose" for applications. Select "VLX Jump Shell" from the list and "Add". Then "Save":

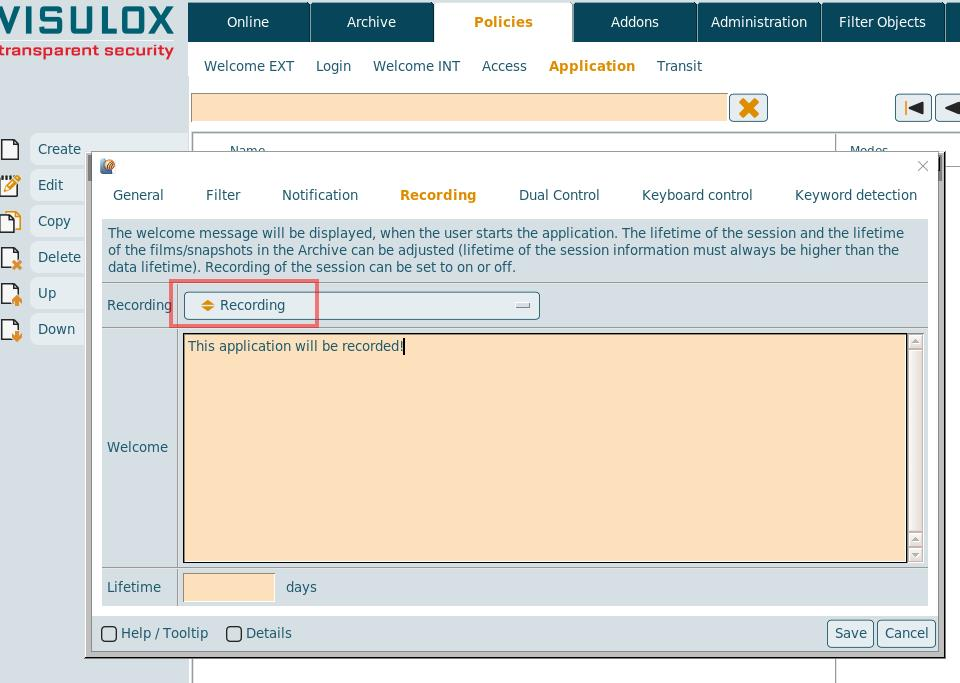

Change to the "Recording" tab and enable recording by choosing "Recording enabled".

A comment can be written as seen in the example.

Launch the VLX Jump Shell application from the Workspace.

More steps

Use the VISULOX PORTAL Console to change other applications e.g. from "Client Window Management Mode" to "Independent Window" and add a window manager.

Add a new X11 application and use vlxUnix.exp as connection script.

Add a Windows application and use vlxWindows.exp as connection script.

Modify the command line to an available RDP Server in your network for VLX RDP. Launch VLX RDP and open the file explorer.
Go to drive E and place a file there. Go to your Workspace and expand the VISULOX Transit Area.
The file can be seen in the Transit Zone. Upload a file and it will be seen in your Windows session below E:\checked .

Checkout in VIUSLOX Cockpit / Archive what happens on the system.

For more detailed information about VISULOX, please refer to the full documentation or contact support@amitego.com.
