Example: Policy based recording

General

Policy based recording is the recommended way to use the VISULOX recording feature. Role based recording is possible with a variety of filters.

For this example setup two users have to be registered in VISULOX PORTAL with the following settings:

User	Role	eMail	SMS	Application	Other
Master	Supervisor	<supervisor>@company.com	-	VISULOX Cockpit	-
Miller	User	<user>@company.com	-	VLX Jump Shell	-

Supervisor Master enables and configures policy based recording.

User Miller logs into VISULOX PORTAL and starts the recorded application.

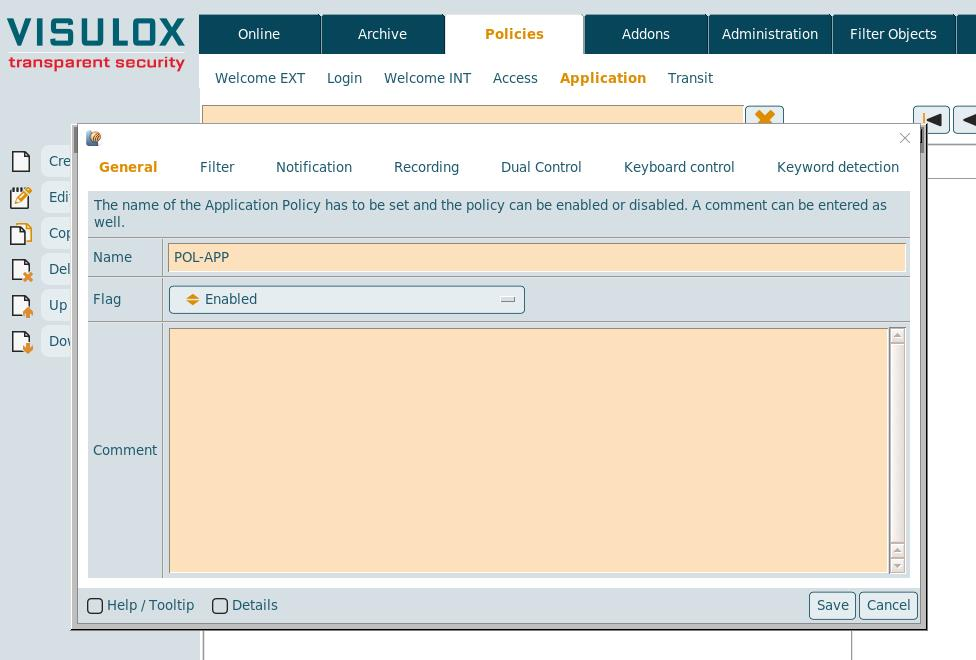

Supervisor Master creates a new Application Policy in "VLX Cockpit":
A unique name for the policy must be entered: "POL-APP".
To use the Application Policy "Enabled" has to be selected.
A comment for the policy can be entered as well.

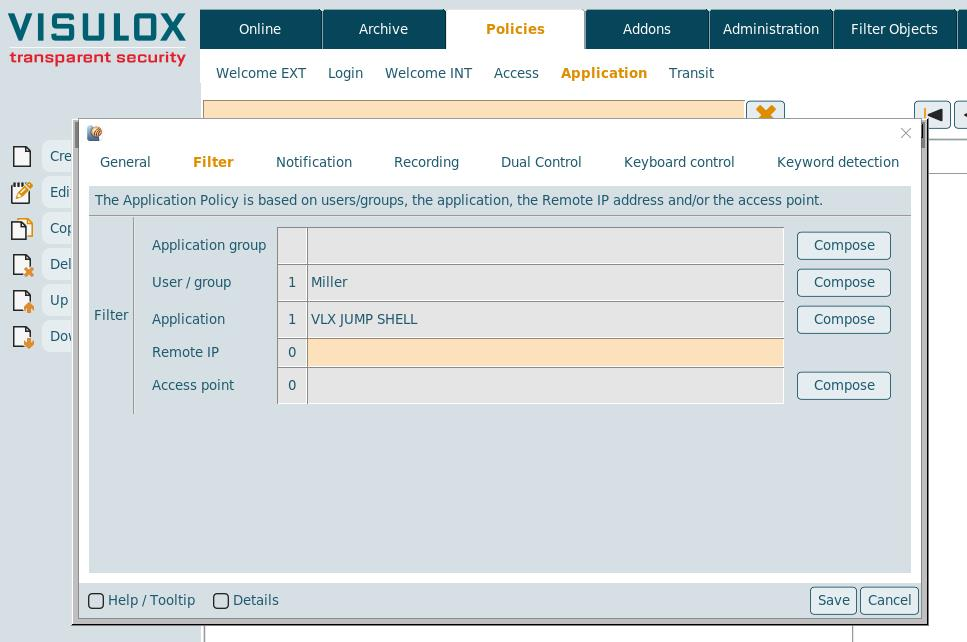

Setting the filter:
Only the "VLX Jump Shell" application from user "Miller" will be recorded in this example.
It is also possible to set a filter for the Remote IP address or the Access point (not used in this example).

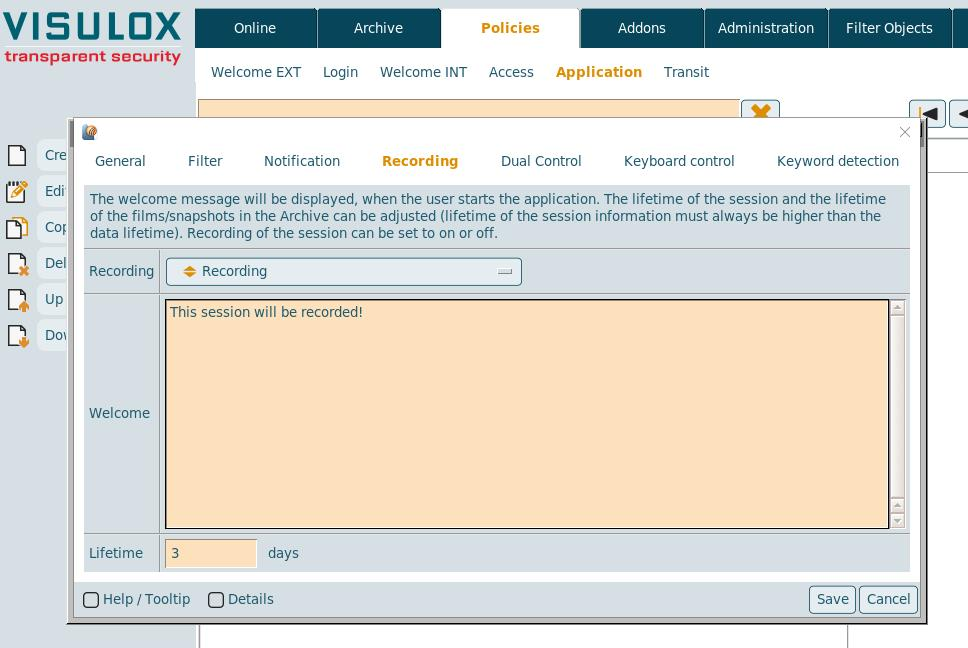

Enable recording:
"Recording" must be selected and a Welcome message can be entered. The session lifetime is set to 3 days in this example.
The script can be used to send a notification to the supervisor (not used in this example).

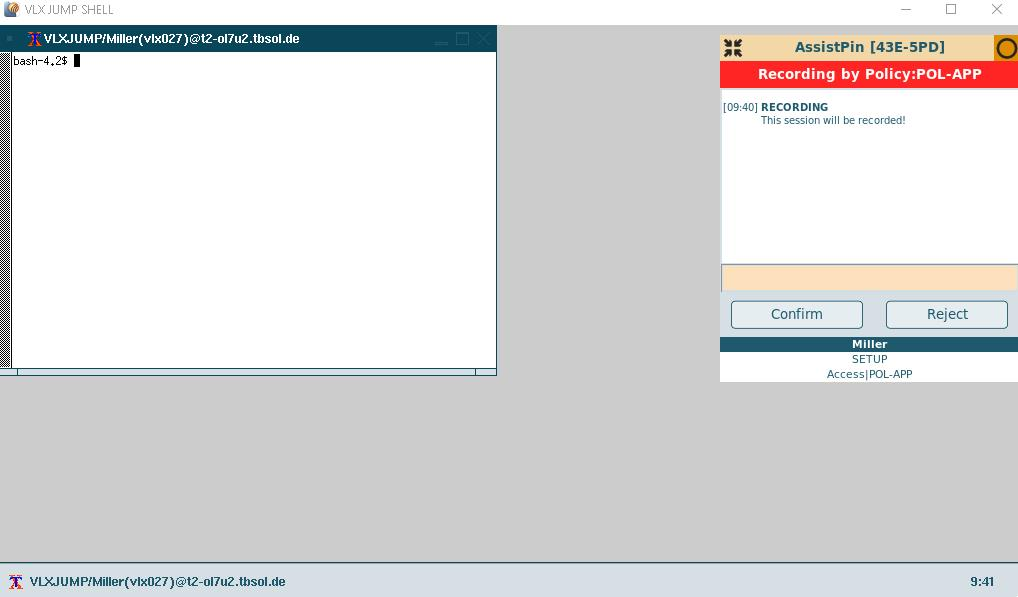

User Miller starts the "VLX Jump Shell" application from his Workspace
Once the application is started the "Recording by Policy" box is displayed, locking the application.
Miller can enter an annotation and must confirm the "Recording by Policy" box to work with the application.
If Miller rejects, the application will be closed.

Feature	Expected behaviour	Comment
Policy mode: disabled	Application Policy has no effect, the next Policy, that matches will be used
Filter settings	User/group mask: all registered users are recorded Application mask: all registered applications will be recorded Remote IP mask: all users connecting from the registered IP are recorded Access point mask: all users connecting over the registered access point are recoded
Recording on/off	Rec on: Recording enabled Rec off: Recording disabled
Session lieftime	Session lifetime information in days. Then the session information will be deleted.
Notification	Send notification to supervisor (See: How to create and use notifications)
Dual Control	See: How to enable, configure and use cooperations
Keyboard recording	See: Example: Keyboard recording
Expect scripts	Recording with vlxWindows.exp and vlxUnix.exp (VISULOX based), recorder should start immediately Recording with windows.exp and unix.exp (Lazy registrated), recorder needs up to 15 sec to start
Configured recording	Recording starts and the recorder box is displayed on the screen of the user Recorder annotation can be entered Screen is locked until "confirm" button is pressed With "Reject", the session will be closed
Events	All actions during recording are displayed in the Cockpit.
