How to configure FreeRDP for VISULOX PORTAL

Introduction

The goal is to call a Windows remote application using FreeRDP. The configuration is done in the VISULOX PORTAL Console.
In this example the preconfigured application VLX RDP is used, which is setup by the VISULOX installation.
It is also possible to configure own applications by using the VISULOX PORTAL Console.

Step 1 : Configuring passcache, single sign on, script object

Resource:

VISULOX PORTAL Console / Launch tab / Arguments for Command

CODE

 -resource <name>

Resources can be configured in the VISULOX Cockpit / Addons / Passcache or via Command Line Interface.

Script object

VISULOX PORTAL Console / Launch tab / Arguments for Command

CODE

 -rdpfile <name>

RDP configuration files can be configured in VISULOX Cockpit / Addons / Script Objects or via Command Line Interface.

Single sign on:

VISULOX PORTAL Console / General tab / Hints field

CODE

 vlxSSO=1;

These steps can be skipped, but in this case user and password must be entered everytime the WTS is connected, before the remote application will be started.

Step 2 : Configuring FreeRDP as an integrated part of VISULOX

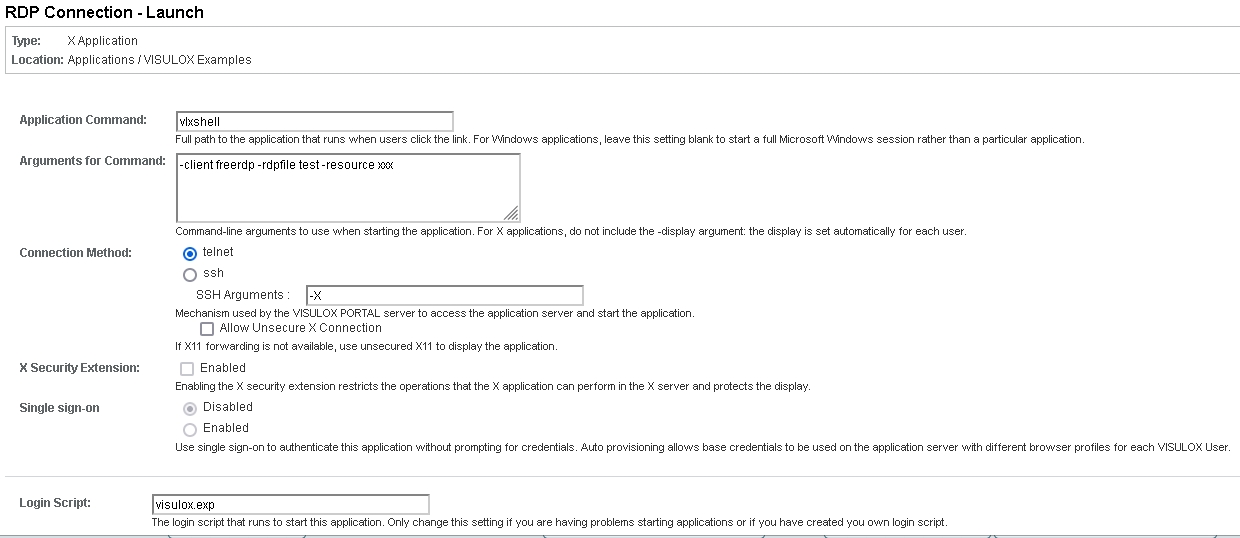

VISULOX PORTAL Console / Launch tab / Application Command field

CODE

vlxshell

In this example a preconfigured script object and a resource will be used:

VISULOX PORTAL Console / Launch tab / Arguments for Command field

CODE

-client freerdp -rdpfile test -resource <resource-name> -- <freerdp-parameter>

vlxshell parameters with RD Gateway configuration and resource:

CODE

-client freerdp -rdpfile RDP -gateway-resource test /g:<server.domain> /gateway-usage-method:direct

Please check the freeRDP documentation of the installed version regarding how to use the parameters for freerdp, if necessary.

The commands of xfreerdp have been changed in version 2.x.

If the new version is used, also the new parameters have to be used in the Arguments for Command field of the vlxshell application.

VISULOX PORTAL Console / Launch tab / Login Script field

CODE

visulox.exp

Step 3 : Configuring Window Manager

The Window Manager has to be configured in the General tab:

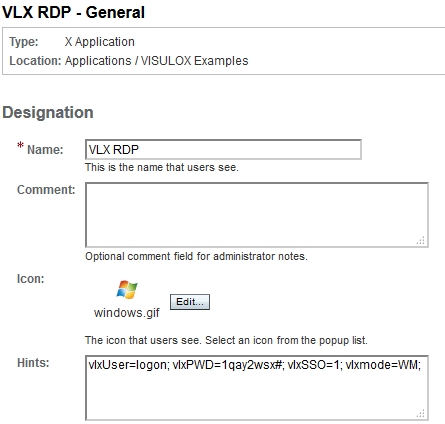

VISULOX PORTAL Console / General tab / Hints field

CODE

vlxMode=WM;

If WM mode is not set freerdp may throw a bad atom error.

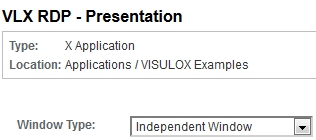

Set the VISULOX PORTALConsole / Presentation tab / Window Type field to "Independent Window"

Remote applications will not be terminated after ending the RDP session, if the WTS is not configured otherwise.
