VISULOX 4 Documentation

Example: Manual recording

General

Manual Recording can be enabled via control panel by the application user himself.

Manual recording within the application

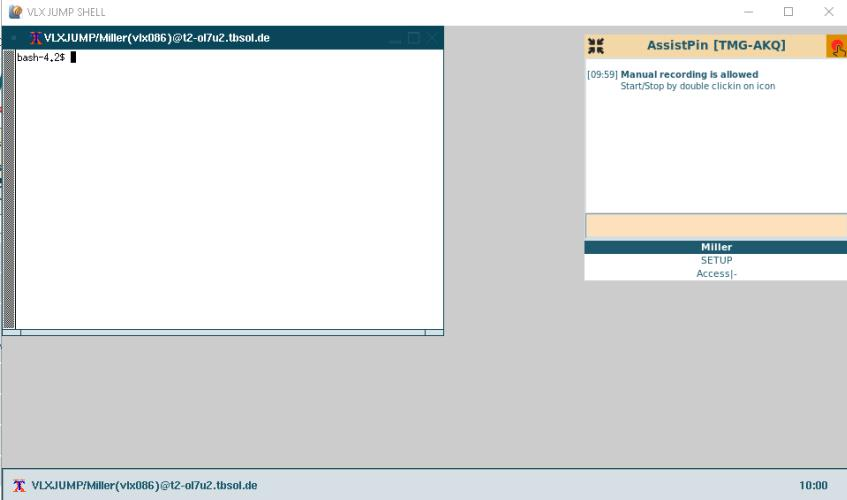

  1. User Miller starts the "VLX Jump Shell" application.

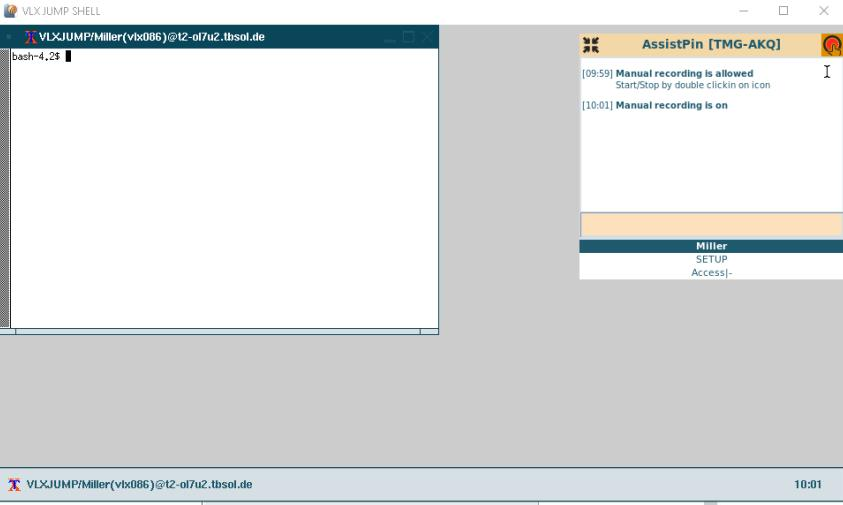

  2. Miller enables manual recording in his control panel with double click on the recorder icon (upper right corner):



Disable manual recording

The manual recording checkbox in the control panel can be removed to prevent users recording their own sessions.

visulox config -name recorder.manually=0
    ---------------------------------------------------
    | changed | parameter         |      type | value |
    ---------------------------------------------------
    |         | recorder.manually | OPERATION | 0     |
    ---------------------------------------------------

Manual recording check list with additional tests

Feature

Expected behaviour

Comment

Manual recording

  • Start recording in a running application

  • Recorder box switches to manual recording on

  • Annotation can be entered


Events

  • All actions during recording are displayed in the Cockpit

  • Film can be watched in the browser based player, once the first chapter is written
