Example: Application based recording via vlxMode parameter

General

Application based recording can be configured via vlxMode parameter in the Hints field of the application via the VISULOX PORTAL Console.

Prerequisites

For this example setup two users have to be registered in VISULOX PORTAL with the following settings:

Supervisor Master enables and configures recording in the VISULOX PORTAL Console.

User Miller logs into VISULOX PORTAL and starts the recorded application.

Application based recording via vlxMode parameter

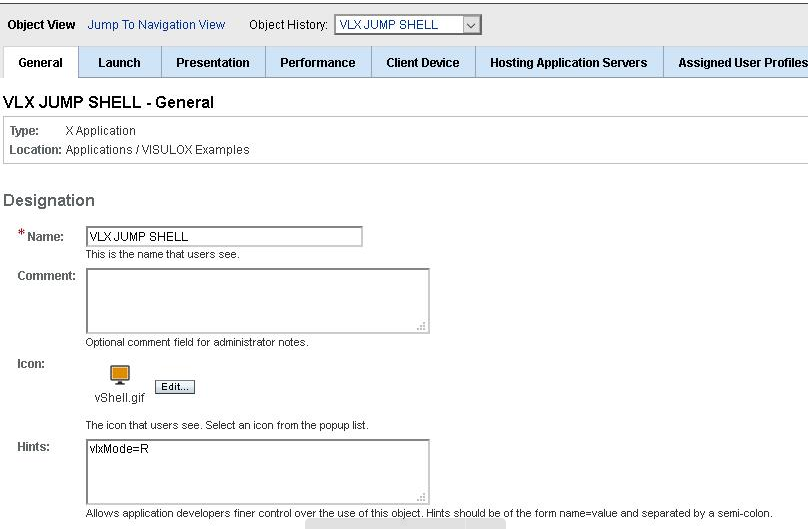

1. Supervisor Master has to adjust the launch parameter of the "VLX Jump Shell" application:



   In the "Hints" field of the application, the vlxMode variable must be entered. For recording: "vlxMode=R".




   Using the existing VISULOX PORTAL expect scripts (unix.exp, windows.exp, ...) will result in what we call "lazy registration".
   That means, that the recorder may need up to 15 seconds to be started.





2. User Miller starts the "VLX Jump Shell" application from his Workspace

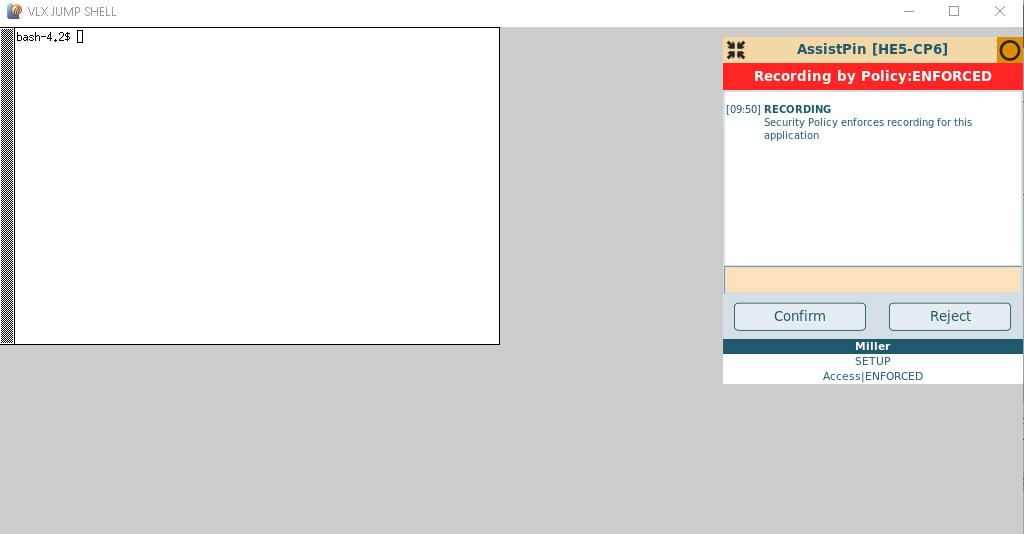

   Once the application is started the "Recording by Policy: Enforced" box is displayed, locking the application.

   Miller can enter an annotation and must confirm the "Recording by Policy" box to work with the application.

   If Miller rejects, the application will be closed.

Recording check list with additional tests
