Authentication with Microsoft Entra

Microsoft Entra can be used to authenticate users to VISULOX environments.

To achieve this some preconditions have to be met.

A VISULOX application must be created in Microsoft Entra.
Microsoft Entra authentication has to be enabled on the VISULOX Portal server
Microsoft Entra parameters have to be entered in VISULOX

Microsoft Entra - VISULOX application settings

Once the Entra application is setup, two entries are needed:

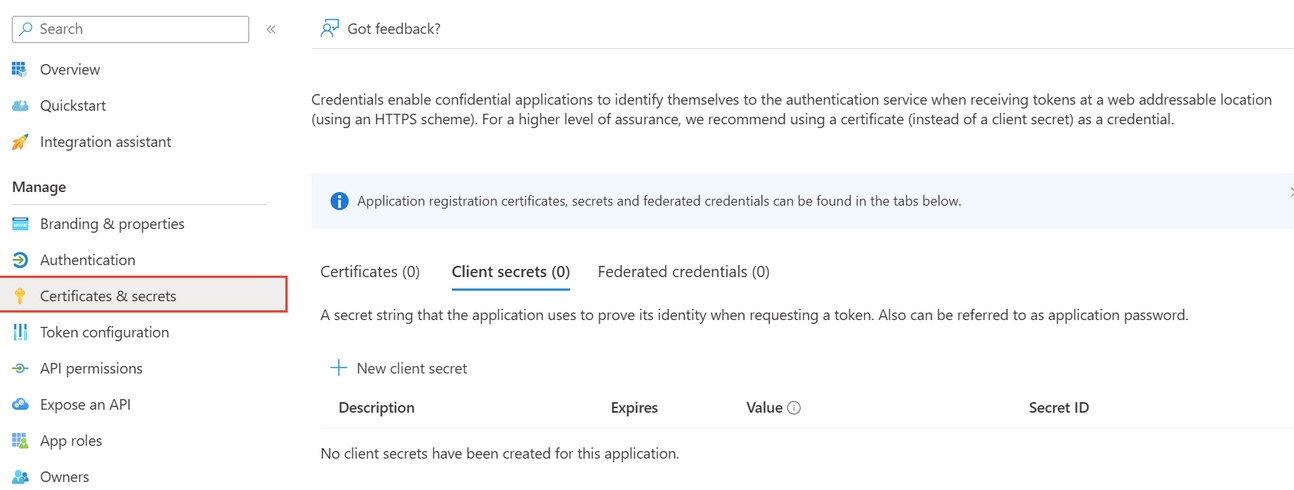

Certificates & secrets:
The secret / key has to be set, for example: aVl8Q~IhnT8fiLsO1qOB9AV5Em1vuasNOtBN5cFC

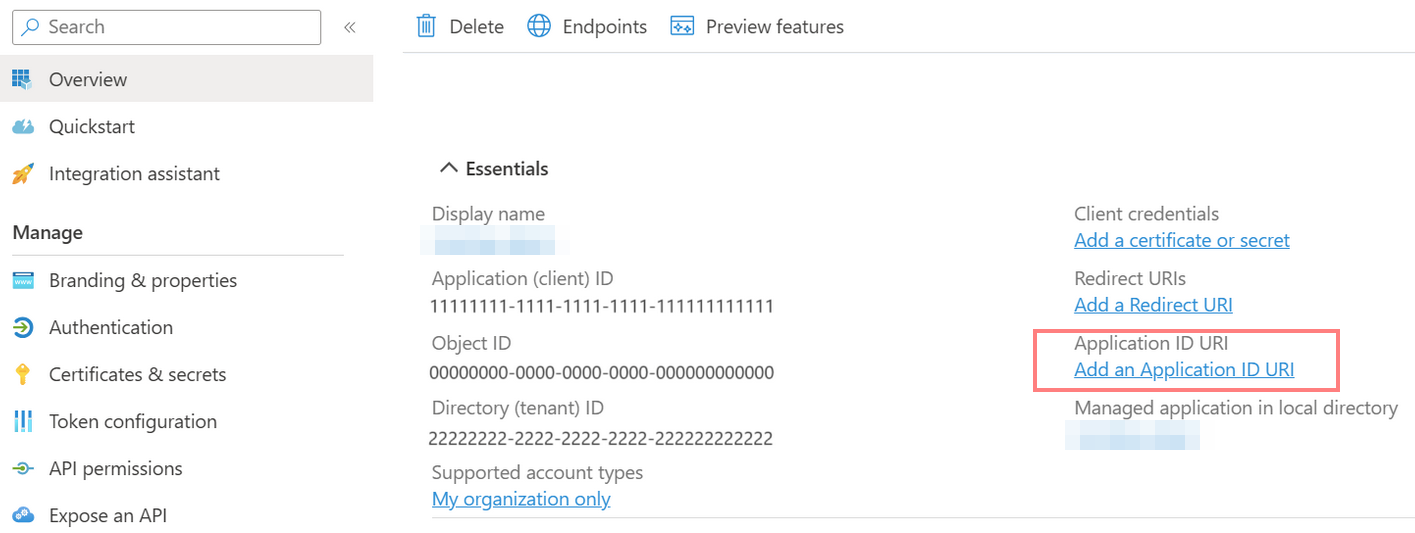

Authentication:
As Redirect URL, the VISULOX Portal URL must be entered, for example: https://vlx-portal-host.domain/visulox/entra/auth/redirect

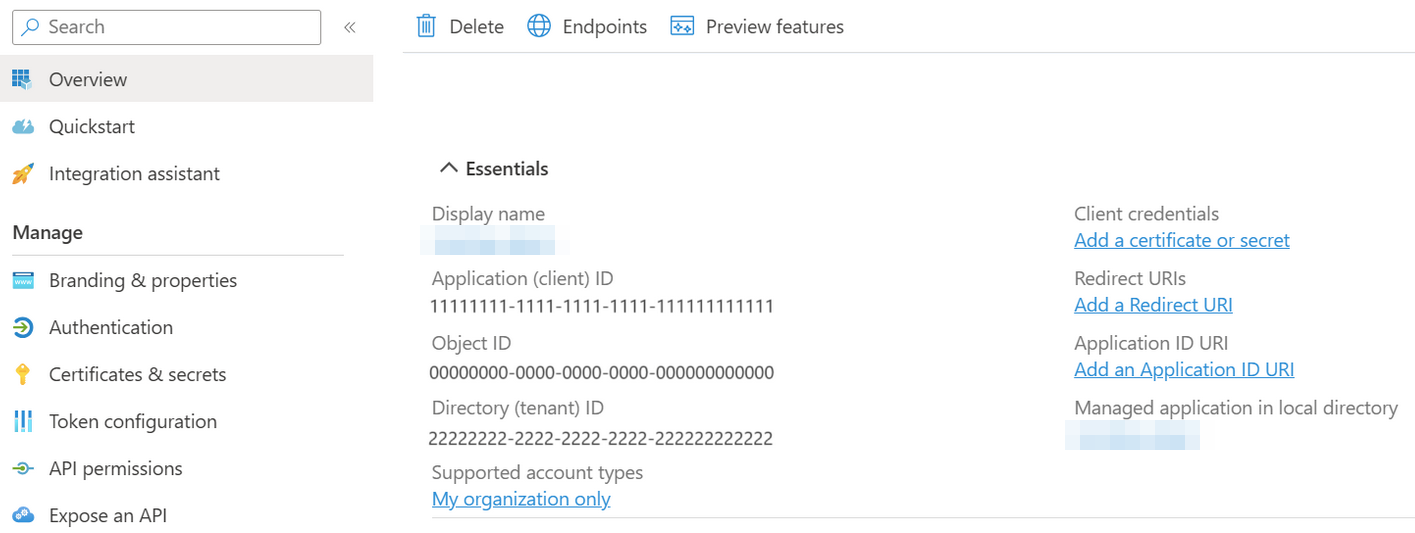

The following information is now available in the Entra application:

Application (client ) ID, for example: c157417f-d7a8-4147-9b09-d3bdc2d62a36
Directory (tenant) ID, for example: 3e1ccbff-07dc-40f7-9843-0703bbbe5436
Secret / key, for example: aVl8Q~IhnT8fiLsO1qOB9AV5Em1vuasNOtBN5cFC
VISULOX Portal URL, for example: https://vlx-portal-host.domain/visulox/entra/auth/redirect

Settings on the VISULOX Portal server

The following parameters have to be set in VISULOX for Microsoft Entra :

CODE

visulox config 3rdparty -enabled true
visulox config edit -name portal.entra.enabled=true

visulox config edit -name portal.entra.clientid=c157417f-d7a8-4147-9b09-d3bdc2d62a36
visulox config edit -name portal.entra.secret=aVl8Q~IhnT8fiLsO1qOB9AV5Em1vuasNOtBN5cFC
visulox config edit -name portal.entra.tenantid=3e1ccbff-07dc-40f7-9843-0703bbbe5436
visulox config edit -name portal.entra.homepage=https://vlx-portal-host.domain

Check parameters with:

CODE

visulox config -name portal.entra
    --------------------------------------------------------------------------
    | changed | key                   | value                                |
    --------------------------------------------------------------------------
    | changed | portal.entra.clientid | c157417f-d7a8-4147-9b09-d3bdc2d62a36 |
    | changed | portal.entra.enabled  | true                                 |
    | changed | portal.entra.homepage | https://vlx-portal-host.tbsol.de     |
    | changed | portal.entra.secret   | Concealed for Confidentiality        |
    | changed | portal.entra.tenantid | 3e1ccbff-07dc-40f7-9843-0703bbbe5436 |
    --------------------------------------------------------------------------

After these adjustments VISULOX must be attached and the VISULOX Portal has to be restarted:

CODE

visulox portal attach
visulox-portal restart

VISULOX login with Microsoft Entra authentication

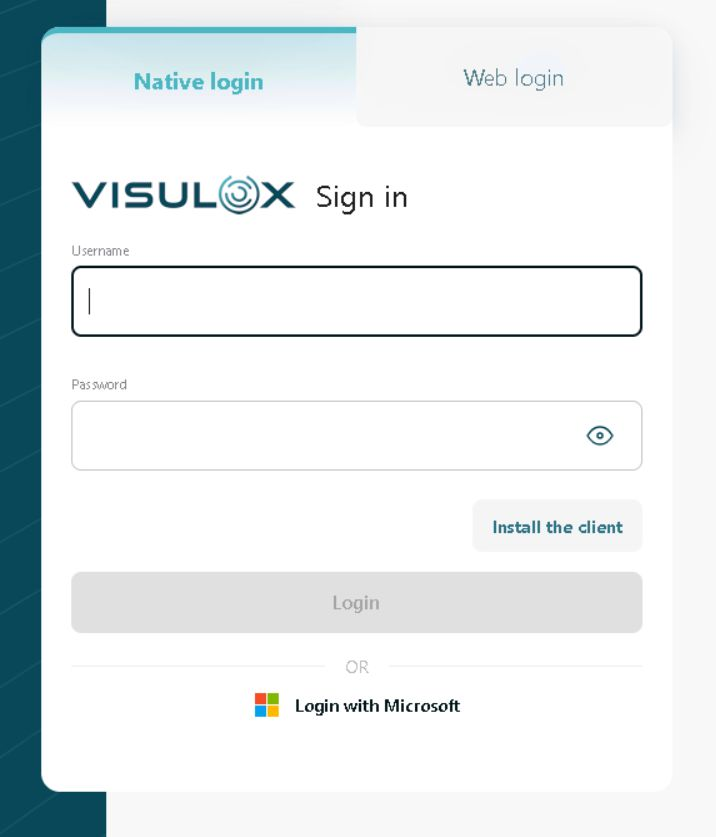

On the VISULOX Portal login page use the Login with Microsoft button instead of directly entering username / password:
Use your Microsoft credentials in the opened Microsoft login mask.
If the login was successful, the VISULOX login page is displayed again:
Press continue to open the Workspace.
