Example: Application based recording via vlxMode parameter

General

Application based recording can be configured via vlxMode parameter in the Hints field of the application via the VISULOX PORTAL Console.

For this example setup two users have to be registered in VISULOX PORTAL with the following settings:

User	Role	eMail	SMS	Application	Other
Master	Supervisor	<supervisor>@company.com	-	VISULOX Cockpit	Access to VISULOX PORTAL Console
Miller	User	<user>@company.com	-	VLX Jump Shell	-

Supervisor Master enables and configures recording in the VISULOX PORTAL Console.

User Miller logs into VISULOX PORTAL and starts the recorded application.

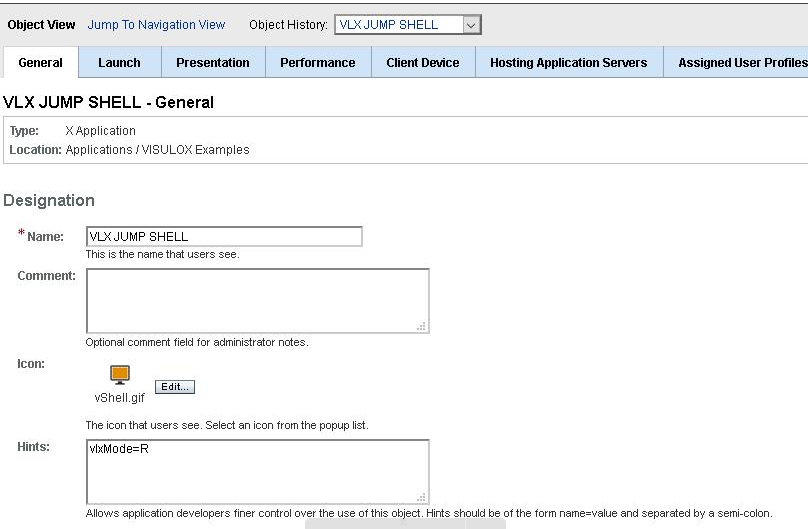

Supervisor Master has to adjust the launch parameter of the "VLX Jump Shell" application:
In the "Hints" field of the application, the vlxMode variable must be entered. For recording: "vlxMode=R".

Using the existing VISULOX PORTAL expect scripts (unix.exp, windows.exp, ...) will result in what we call "lazy registration".
That means, that the recorder may need up to 15 seconds to be started.
User Miller starts the "VLX Jump Shell" application from his Workspace

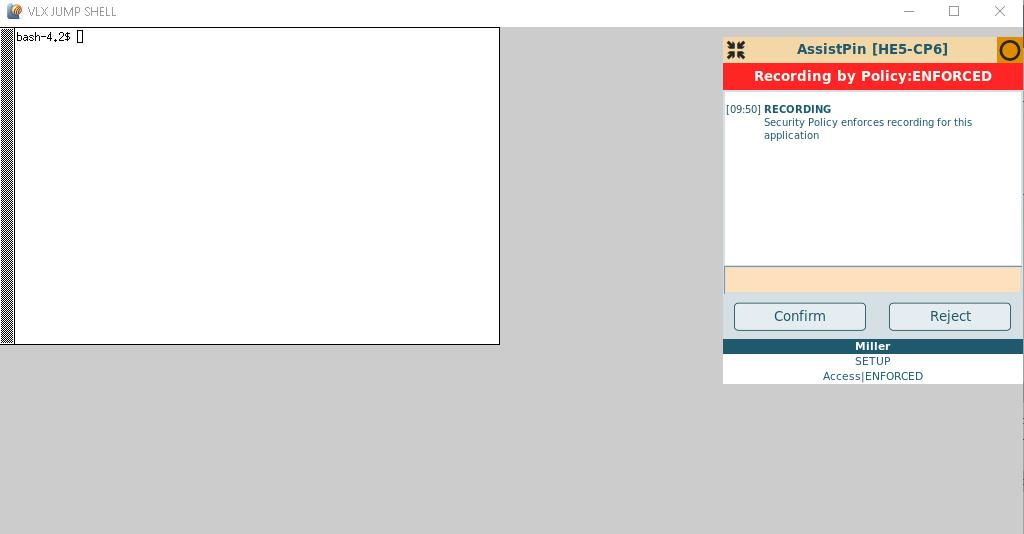

Once the application is started the "Recording by Policy: Enforced" box is displayed, locking the application.
Miller can enter an annotation and must confirm the "Recording by Policy" box to work with the application.
If Miller rejects, the application will be closed.

Feature	Expected behaviour	Comment
Expect scripts	Recording with vlxWindows.exp and vlxUnix.exp (VISULOX based), recorder should start immediately Recording with windows.exp and unix.exp (Lazy registrated), recorder needs up to 15 sec to start
vlxmode variable	Application based recording with vlxmode=R
Configured recording	Recording starts and the recorder box is displayed on the screen of the user Recorder annotation can be entered Screen is locked until "confirm" button is pressed With "Reject", the session will be closed
Manual recording	Start recording on a running application Entering / selecting a message for the user Recorder box with message is displayed on the screen of the user. Recorder annotation can be entered Screen is locked until "confirm" button is pressed
Events	All actions during recording are displayed in the VISULOX Cockpit.
